Description

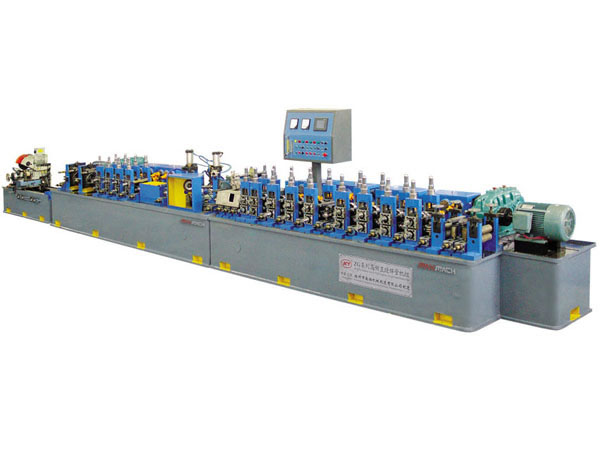

Stainless steel welded pipe mill can be divided into different types according to the diameter and wall thickness of the pipe. Our Maxtube-bg 40 mill is designed to produce pipes/tubes ofΦ25.4mm-Φ50.8mm and thickness range of 0.8mm-2.0mm. Also, we can produce in accordance with customers’ requirements. By absorbing advanced pipe making technology from both domestic and overseas, our products are both economical and practical.
Application
Stainless steel welded pipe mill is mainly used to weld round and square/rectangular pipes. This line utilizes roll forming to process steel strip into various shapes. It is also capable of producing shape steel of various diameters and sizes by high frequency induction heating and welds seam squeezing.
Features
1.It is endowed with high quality. By taking advantages of same kind machines at home and abroad, our products are popular with customers.
2. Our stainless steel welded pipe mills are manufactured from best materials, thus they are steady, durable and have a long working life.
3.All of our products are with excellent performance at low cost.
Technical specifications
|
Description
|
stainless steel welded pipe mill
|
|
Item
|
Maxtube-bg20
|
Maxtube-bg40
|
Maxtube-bg60
|
|
Diameter of welded tubes
|
Φ8-25.4mm
|
Φ25.4-50.8mm
|
Φ38.1-76.2mm
|
|
Wall thickness of welded tubes
|
0.5-1.0mm
|
0.8-2.0
|
1.0-3.0
|
|
Speed of tube welding
|
0.5-8M/min
|
0.5-6M/min
|
0.5-4M/min
|
|
Ar-arc welder
|
400A
|
600A
|
600A
|
Process flow for the Maxtube-bg40 stainless steel welded pipe mill
Raw material (steel coil) → uncoiling →shearing and butt-welding →forming and shaping →TIG welding →Polishing burrs outside of weld seam →cooling → sizing →roughly straightening →fixed length cutting →run-out table
Basic components for Maxtube-bg40 stainless steel welded pipe mill
Uncoiler →Shearing and butt-welder →Forming unit →Welding unit →Polishing unit →Rough sizing unit →annealing (Prepared by customer) →Traction precision sizing unit →Fixed length rotary-cutting saw →Run-out table
We firmly adhere to quality control principle and pay close attention to every step of production process. We are with professional testing equipment to guarantee the quality. Our inspectors perform strict inspections to ensure our products function well and no problem occurs. Here we sincerely invite you to be our partner for brilliant future by working together.
