Description
We are renowned for our carbon steel pipe welding machine which is to produce Φ13-Φ50.8mm and δ0.6-2.0mm high-frequency straight seam welded pipe, square pipe and special-shaped pipe (δ≤1.5mm). Welding machines with different diameter and wall thickness are available according to your requirements.
Features
1.Our products are endowed with high quality and less weld metal required.
2.Our carbon steel pipe welding machine is with long working life and high production rate.
3.All of our products are with excellent performance at low cost.
Technical specifications
|
Description
|

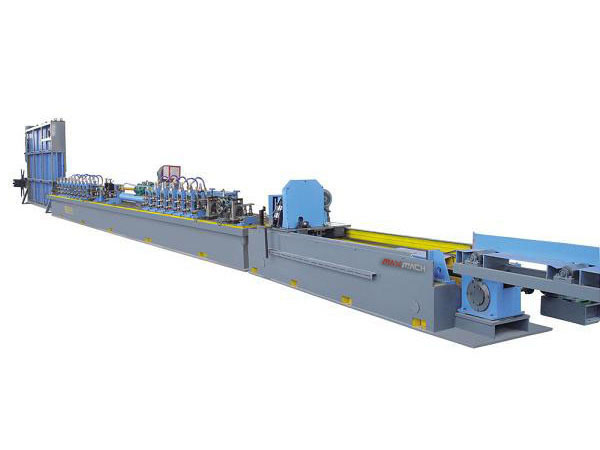

Carbon steel pipe welding machine
|
|
Diameter of welded tubes
|
Φ13-50.8mm
|
|
Wall thickness of welded tubes
|
0.6-2.0mm
|
|
Speed of tube welding
|
50-90M/min
|
|
Power of major motor
|
90KW
|
|
Power of high frequency welder
|
100KW
|
Components for Carbon steel pipe welding machine
|
Conponents
|
|
1.Uncoiler
|
1set
|
|
2.Shearing and butt-welding machine
|
1set
|
|
3.Accumulator
|
1set
|
|
4.Forming and sizing device(include master)
|
1set
|
|
5.Computer-controlled tracking cutting saw
|
1set
|
|
6.Finished pipe passing conveyor
|
1set
|
|
7.Solid state 150KW high-frequency electric
|
1set
|
Maintenance and transportation
User shall regularly lubricate chain wheel, bearings and speed reducer, etc. and keep clean of forming rollers.
Our well-trained sales team is ready to assure the quality and effectiveness of your machine purchase. We will pay close attention to your orders and enquiries so as to fully assist you. We supply detailed and intact products and technology service for you. We also make great efforts to select carbon steel pipe welding machine with high performance and low cost for you.
