Description

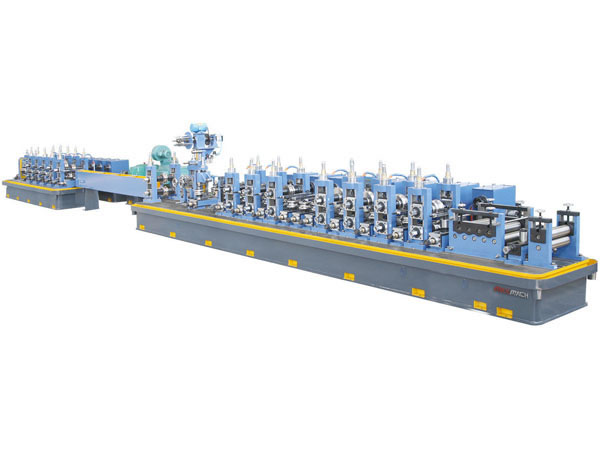

Tube mill line can be divided into different types according to the diameter and wall thickness of the pipe. As a specialized manufacturer, our Maxtube 76 pipe production line is specially designed to produce Φ25-Φ80mm and δ1.2-4.0mm high-frequency straight seam welded tube, square tube and special-shaped tube (δ≤3.0mm).
Features
1.Our tube mill line is endowed with high quality. By taking advantages of same kind machines at home and abroad, our products are popular with customers.
2.Our pipe production line is with long working life.
3.All of our products are with excellent performance at low cost.
4. The application of advanced aperture technology, PLC automatic control system and digital speed regulating unit ensure that the production line works reliably and operates and maintains easily.
Technical specifications for the Maxtube 76 tube mill line
|
Description
|
Maxtube 76 pipe production line
|
|
Diameter of welded tubes
|
Φ25-80mm
|
|
Wall thickness of welded tubes
|
1.2-4.0mm
|
|
Speed of tube welding
|
30-70M/min
|
|
Power of major motor
|
160KW
|
|
Power of high frequency welder
|
300KW
|
Process flow for Maxtube 76 tube mill line
Raw material (steel coil) → uncoiling → shearing and butt-welding → material accumulating → non-power leveling →mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finished pipe → run-out table
Basic components for Maxtube 76 tube mill line
1Hydraulic uncoiler →Shearing and butt-welder →Horizontal-type accumulator →Forming machine →Water cooling tank →Sizing machine →Computer cutting saw →Run-out table
2. Hydraulic uncoiler →Shearing and butt-welder →Horizontal-type accumulator →Forming machine →Water cooling tank →Sizing machine →Cold saw →Run-out table
Our well-trained sales team is ready to assure the quality and effectiveness of your machine purchase. We will pay close attention to your orders and enquiries so as to fully assist you. We supply detailed and intact products and technology service for you. We also make great efforts to select tube mill line with high performance and low cost for you.
