Description

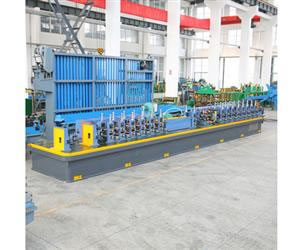

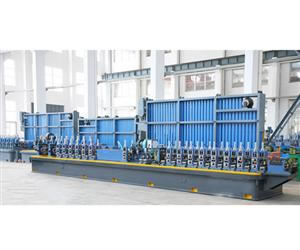

we are famous for our production line for pipe manufacturing, and our Maxtube 28 pipe production line is specially designed to produce Φ10-Φ38mm and δ0.5-1.5mm high-frequency straight seam welded tube, square tube and special-shaped tube (δ≤1.2mm). In addition, we can manufacture pipe production line in accordance with customers’ requirements. Absorb advanced pipe making technology from domestic and overseas, our products are economical and practical.
Manufacturing Process

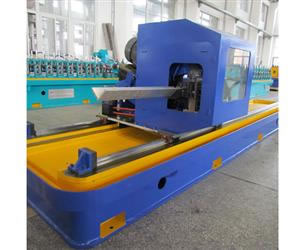

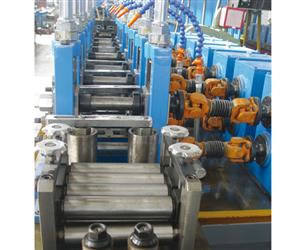

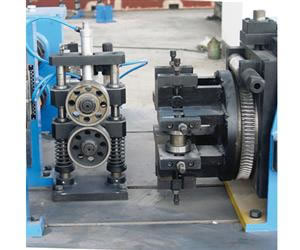

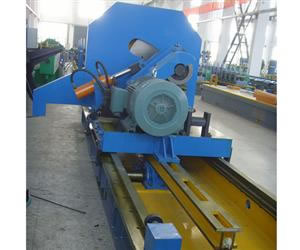

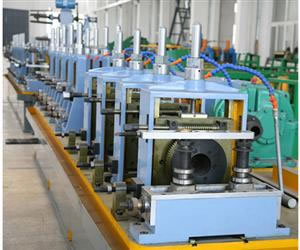

Manufacturing process of 0.5-1.5mm steel pipe production pine is composed of uncoiling, molding, welding, polishing, sizing, straightening and cutting, etc. Rolling speed can be adjusted correspondingly within proper range of pipe diameter and wall thickness.
Features
1.Our pipe production line is endowed with high quality. By taking advantages of same kind machines at home and abroad, our products are popular with customers.
2.Our production line for pipe is with long working life.
3. It is easy to control and operate.
3.All of our products are with excellent performance at low cost.
Technical parameters for the Maxtube 28 0.5-1.5mm steel pipe production pine
|
1. Material
|
Low-carbon steel, low alloy steel
|
|
2. The thickness of steel strip
|
0.5-1.5mm (As per GB708-88)
|
|
3. The of steel strip
|
32-120mm
|
|
4. I.D. of steel coil
|
Φ450-Φ550mm
|
|
5. O.D. of steel coil
|
Φ800-Φ1200mm
|
|
6. Maximum weight coil
|
1000kgs
|
|
7. D.of processing steel pipe
|
Φ10-Φ38mm
|
|
8. Wall thickness of processing steel pipe
|
0.5-1.5mm(square pipe and special-shape pipe≤1.2mm)
|
|
9. Length of processing steel pipe
|
4-8M
|
|
10. Milling speed
|
20-80M/min
|
|
11. Product precision
|
maximum tolerance of diameter±0.05mm
|
|
12. High-frequency equipment power
|
100 KW (Solid state)
|
Our well-trained sales team is ready to assure the quality and effectiveness of your machine purchase. We will pay close attention to your orders and enquiries so as to fully assist you. We supply detailed and intact products and technology service for you. We also make great efforts to select pipe production line with high performance and low cost for you.
