Description

Pipe welding machine can roll certain specification long steel belt into tube barrels, and then weld those tube barrels into tubes. It can be used to manufacture profiled pipes as well as round pipes. We are experienced in welded pipe mill manufacturing, and our Maxtube 60 is specially designed to produce pipes with Φ16-Φ63.5 mm and δ1.0-3.0 mm (δ≤2.5mm).

Application

Pipe welding machine is widely applied in aviation, aerospace, nuclear power, power stations, oil refining, seawater desalination and other high-end pipe making fields.

Features

1.Our products are endowed with high quality. By taking advantages of same kind machines at home and abroad, our products are popular with customers.
2.Our welded pipe mill is with long working life.
3.All of our products are with excellent performance at low cost.

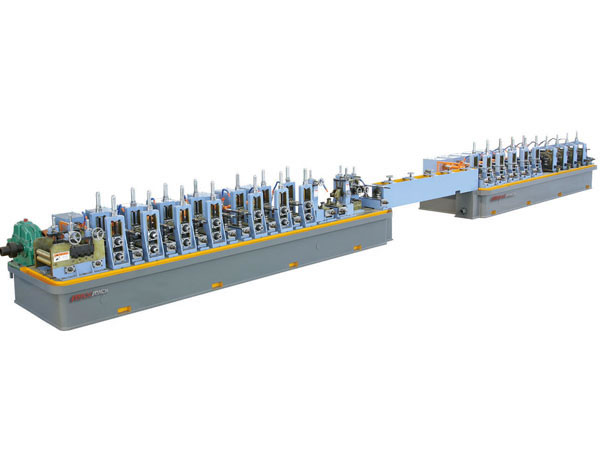

Technical parameters for the Maxtube 60 pipe welding machine

Description	Maxtube60 tube mill line
Diameter of welded tubes	Φ16-63.5mm
Wall thickness of welded tubes	1.0-3.0mm
Speed of tube welding	40-80M/min
Power of major motor	132KW
Power of high frequency welder	200KW

Process flow for Maxtube 60 welded pipe mill

Raw material (steel coil) → uncoiling → shearing and butt-welding → material accumulating → non-power leveling →mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finished pipe →run-out table

We are with favorable geological advantage in producing pipe welding machine. Depending on the good science and technology environment, we are devoted to developing high-tech metallurgical equipments to customers. Our specialized quality and technical inspection team focus on the production and R&D of welded tube making machine. Our welded tube making machines are exported around the world.
